Audio Sound Board

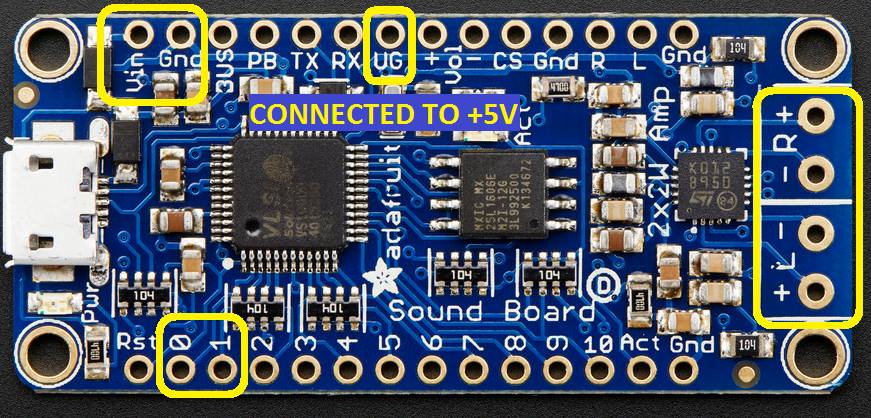

This audio board available FLASH storage on board allowing for easy "drag-n-drop" file transfer when connected via USB to a computer.

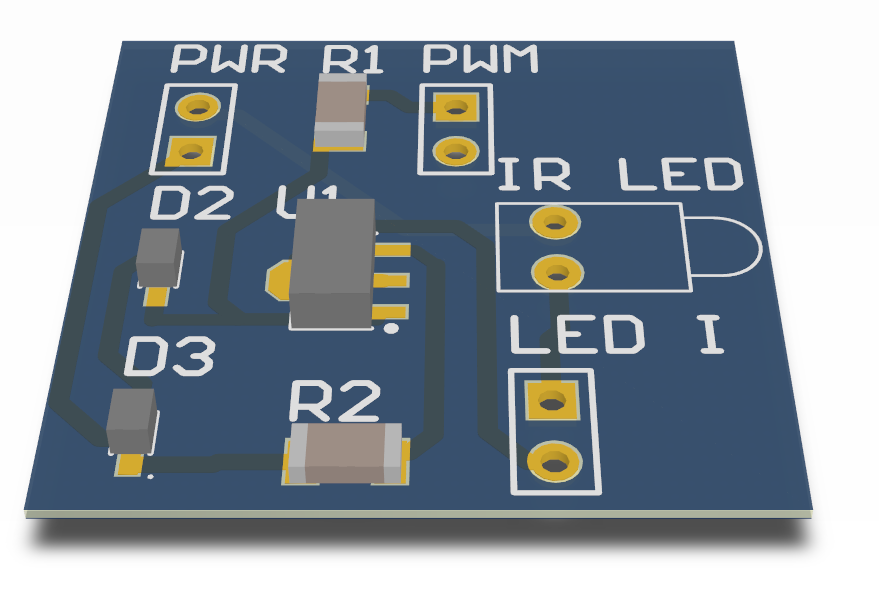

IR Transmitter Board Layout

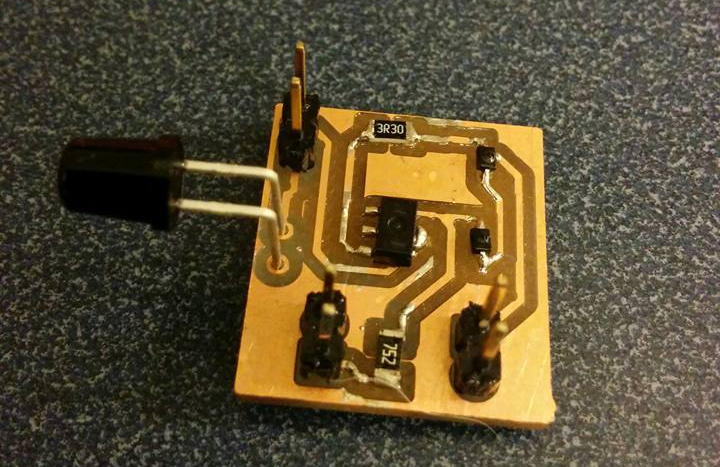

IR Transmitter Prototyping Milled Board

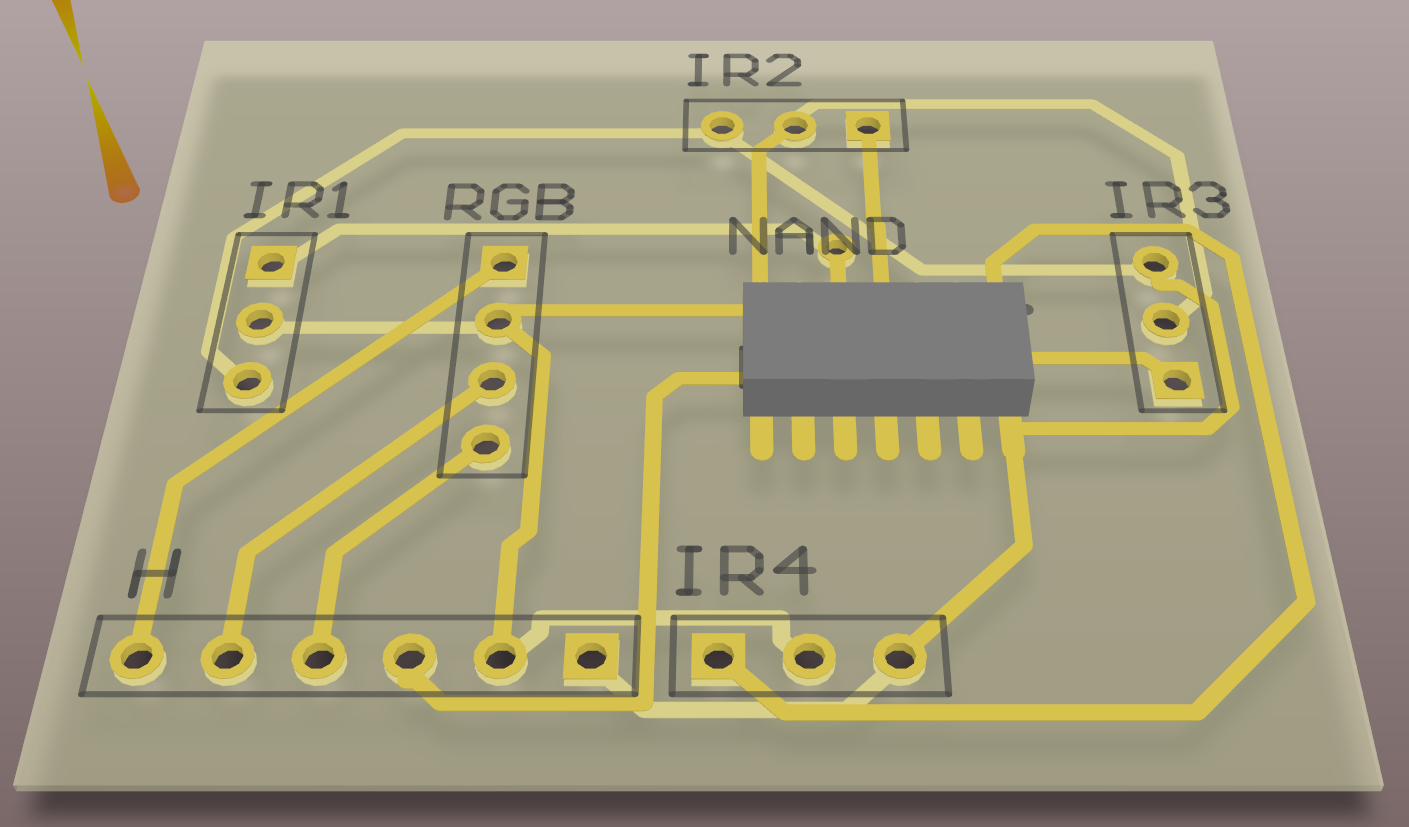

IR Receiver Board Layout

The IC on the prototyping board is a quad NAND gate IC so that when any of the four IR receivers trigger, the NAND will output a high signal to the PIC.

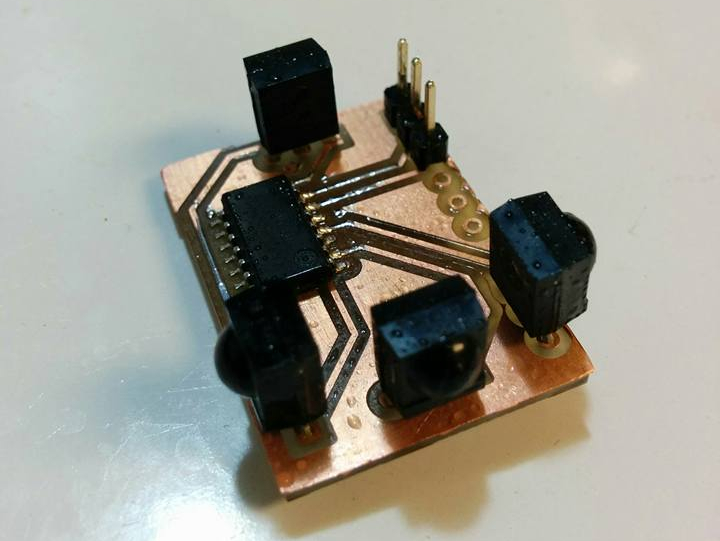

IR Receiver Prototyping Milled Board
